Multi Tariff Single Phase Kwh Meter Prepaid Electricity Meter Class 1 Accuracy

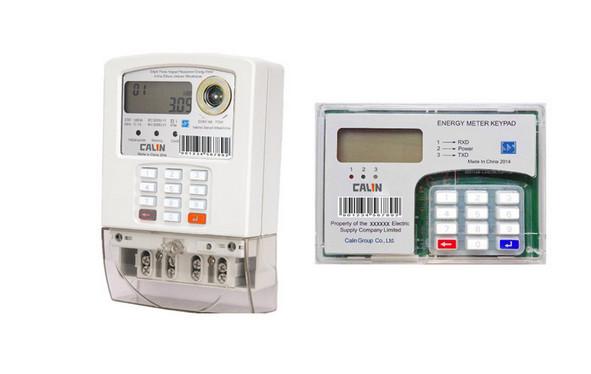

The CA168 is used for a wide range of applications, due to an improved dynamic range allowing a basic current of 5 Amp while retaining a maximum current of 80 Amp and extended functional features. It is a compact and keypad-based design in a BS8565 standard housing and maintains the rugged RF immunity withstand of 30V/m and IP54 rating, allowing it to be installed in harsh environments.

.

Major Features

1. Load control, over-load switching automatically
2. Programmable under and over voltage trip
3. Significant reverse energy measurement SRE
4. Enhanced tamper detection
5. Multi-Level alarm value enable setup
6. Preset delayed reconnection
7. IP 54 rating

Utility benefits

1. PLC/ RF / GPRS communication for AMR AMI features (On request)
2. Time of Use (TOU) , multi-rate, holiday setting
3. Easy and quick to install with exisiting wires
4. 15 year designed life
5. Enhanced revenue protection through flexible payment control

Specifications:

Application Of Single Phase Electric Meter
1. Measure, monitoring power distribution system parameters.

2. Collect energy consumption data that cost center analysis needs.

3. Limit monitor alarm(such as over voltage, power consumption).

4. Power quality analysis.

5. Green building or DC

Advantage Of Single Phase Electric Meter

1) Easy to deploy and maintenance

2) Increased tamper protection

3) Low operational cost

4) Optical port offers simple interrogation

5) Broad range of engineering settings

6) 15 year designed lifespan

Calin, as derived from China League of Innovation, dates  back to the year 2006  when our team developed the new generation of CPU card electronic prepaid kilo-watt hour meter for China State Grid. Now there are over 1,000,000 pcs this type of smart prepayment electric meters operating  as key revenue protection devices for utilities and service providers in and out of China.

Each member of Calin R&D team  ever served in top rank Chinese meter companies and contributed to the rapid development of smart metering industry in China. With vast forefront field experience and expertise, Calin offer a broad metering product range, comprising of conventional electric meters, water meters, prepaid meters, wireless communication meters, vending and management systems, AMR / AMI smart metering solutions, consulting, training and support.

Calin is the forerunner of prepaid metering industry in China. Our products and solutions are all developed on the concept of revenue protection and better management, and thus enjoy very high reputation in the industry. Even now China is supplying components, complete products as in OEM, and meter electronic design to many other meter manufacturers. With this OEM and trade partners, Calin’s business has expannded to over 30 countries and regions worldwide.

To share with our clients the benefit from our constant innovation and commit to our clients’ request is Calin’s forever unchanging principle. Running away from responsibility is always condemed. Calin will keep servicing our clients with our best innovation and commitment to create best mutual benefit.
