IP54 Din Rail Mounted Single Phase Kwh Meter Programmable Load Limit

Smart Single phase STS keypad prepaid meter DDSY168

Smart Single phase STS keypad prepaid meter DDSY168

The Smart DDSY168 is used for a wide range of appplications, duo to an improved dynamic range allowing a basic current of 5 Amp while retaining a maximum current of 80 Amp and extended functional features, It is a compact and keypad-based design in a BS8565 standard houseing and maintains the rugged RF immunity withstand of 30V/m and IP54 rating, allowing it to be installed in harsh environments.

Major Features

1. 20 digit (Standard Transfer Specification) STS encryption
2. Detection of significant reverse energy (SRE)
3. IEC62056-21 compliant port allowing for easy data interrogation
4. Disconnects on overload and no credit
5. Dual power source working on both prepaid and credit mode
6. Programmable load limit and low credit warning
7. Detection and record tamper event such as cover open, reversal, black-out, etc.
8. Easy access to 12 months historical consumption data and last 5 token entered

Utility benefit

1. Easy connection to User Interface Unit (UIU) for split type applications

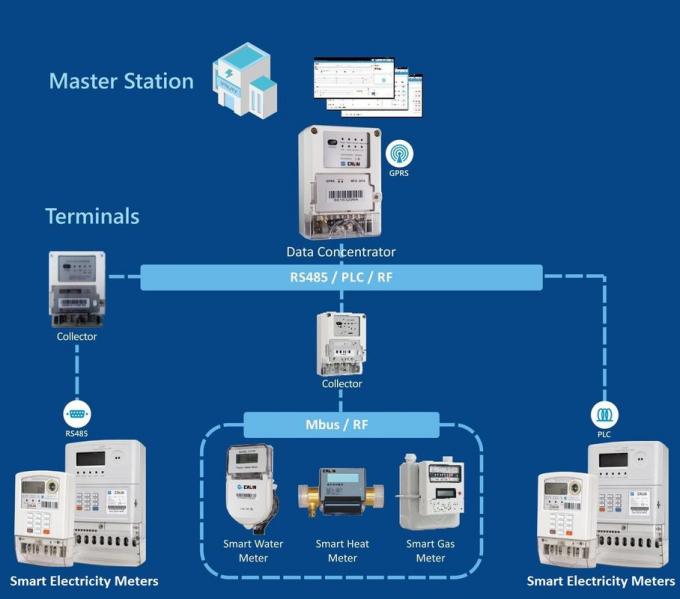

2. RF / GPRS wireless communication with a head-end AMR/AMI server
3. Time of Use (TOU), multi-tariff, holiday setting.
4. Advanced load control and disconnection features

Specifications:
