    Real Time Smart Prepaid LPG Gas Meter IoT Communication Technology

    Ask Lasest Price
    Brand Name : CALIN
    Model Number : CA768-K
    Certification : STS, CNEX, SNI
    Price : Negotiation
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 500000Piece/Year
    Delivery Time : 6 weeks
    • Product Details
    • Company Profile

    Real Time Smart Prepaid LPG Gas Meter IoT Communication Technology

    Real Time Smart Prepaid LPG Gas Meter IoT Communication Technology

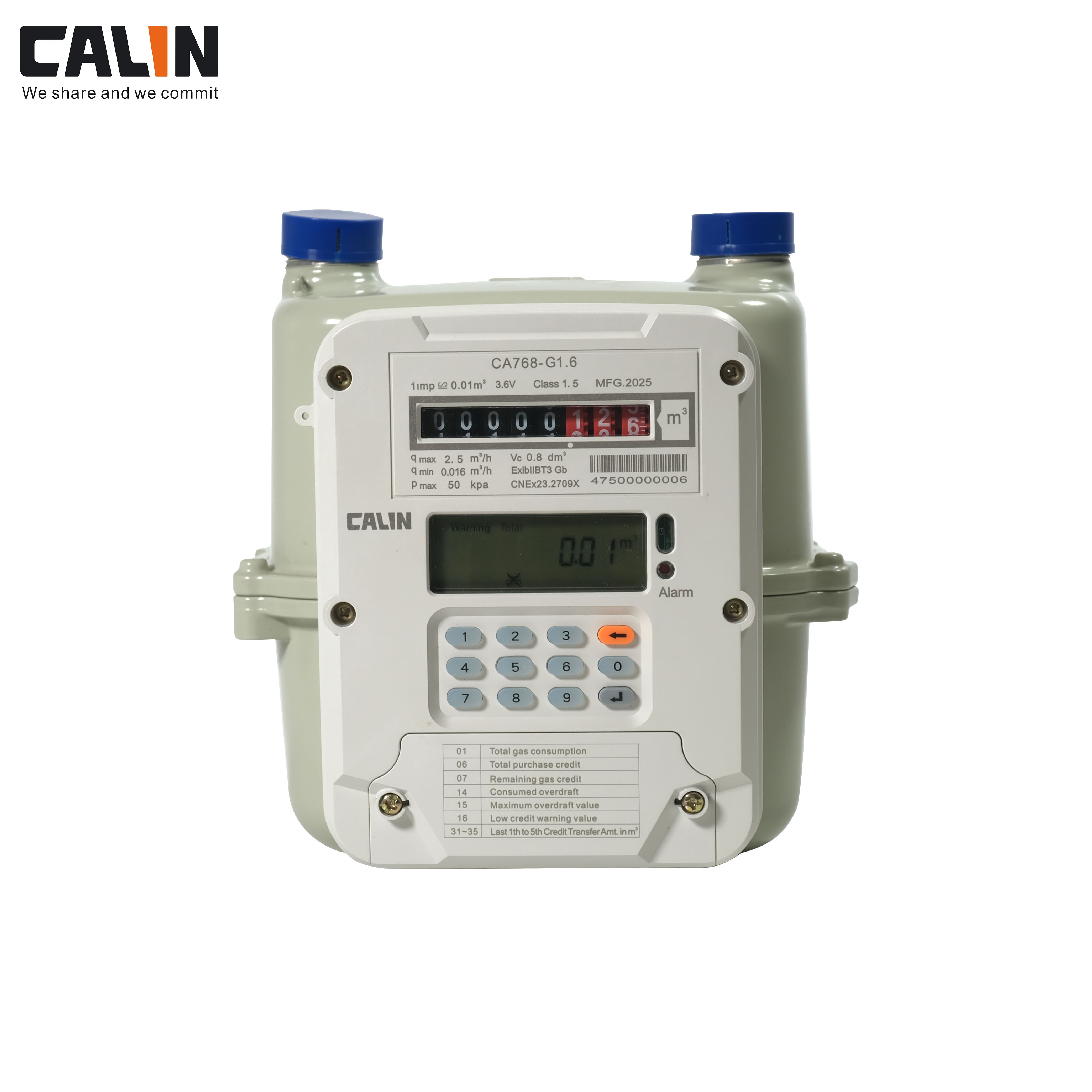

    Real-Time IoT Communication Technology Smart Prepaid LPG Gas Meter


    The CA768-K is our new design of smart prepaid gas meter. The body of CA768-k is cast with aluminum, which is resistant to oxidation and corrosion. Built-in high an integrated PCB board for pulse signal accurate collection, LCD display, valve control, remote communication.Based on the RF-Lora IoT communication technology, the meter support reading remotely, daily report upload, valve control from the backend.


    Main Features


    • Supplying Domestic Usage Size: G1.6, G2.5 and G4

    • Integrate with mobile payment platform, getting token online.

    • Top up a token remotely or input manually

    • Comply with STS compliant

    • Built in 2 pieces long life lithium batteries

    • Anti tamper valve shut-off

    • Low credit warning

    • Low power usage and low failure rate


    AMI Remote Communication Sketch

    The data concentrator collects reading or other data from nearby smart gas meters by RF-Lora, and then upload the data to the cloud server by 4G or Ethernet. The repeater can extend the communication range for the DCU or avoid the obstacles between the DCU and meters.

    Our system support integrates into the third platform. Other software interfaces or platforms can call data from our server by API port.

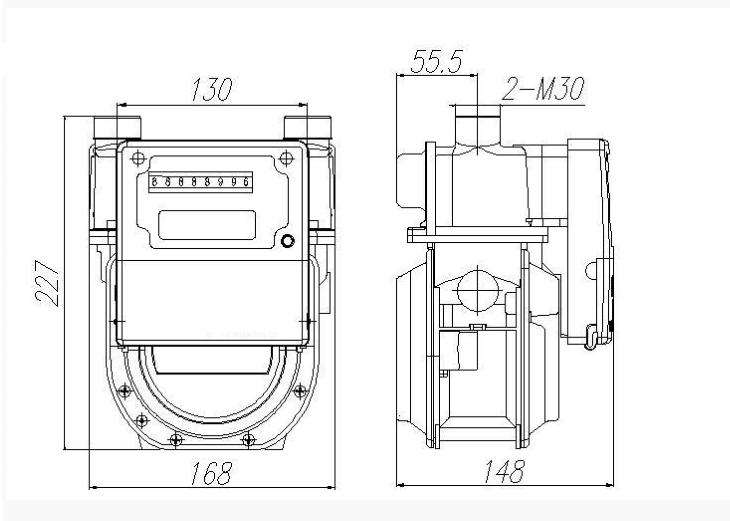

    Dimensions


    Parameters


    Type

    G1.6

    G2.5

    G4

    Nominal Flow Rate m³/h

    1.6

    2.5

    4

    Maximum Flow Rate m³/h

    2.5

    4

    6

    Minimum Flow Rate m³/h

    0.016

    0.025

    0.040

    Maximum Work Preesure

    50kPa / 7 psi

    Basic Error %

    Qmin<Q<0.1Qmax: ±3; 0.1Qmax<Q<Qmax: ±1.5;

    Leak-Provenance kPa

    No leakage below 15kPa

    Pressure Loss kPa

    <250

    Maximum Reading m³

    99999.9

    Minimum Reading m³

    0.2

    Weight(kg)


    2 kg
